RG-RSR20-X

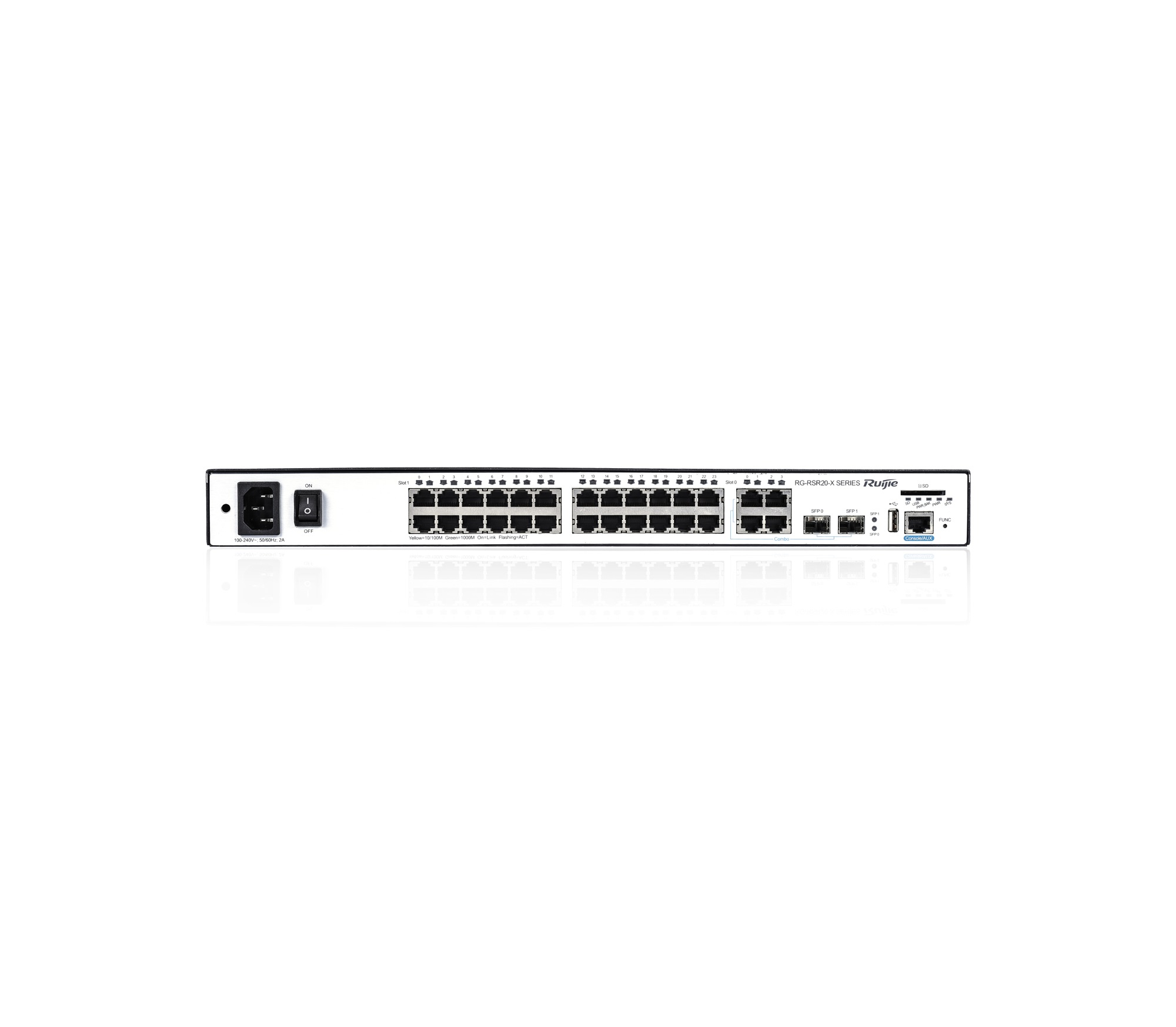

RG-RSR20-X Router
Описание
The RG-RSR20-X Gigabit Router Series, integrating routing, switching and security into one piece, is Ruijie’s next-generation access product as an extension of the successful RSR (Reliable Multi-Service Router) Series. In addition to the comprehensive upgrade in terms of performance, port density, speed and reliability, the RG-RSR20-X Series provides an integrated solution which enables scalable deployment of new applications for the financial sector, government and enterprises while minimizing the investment cost.
Operating on Ruijie’s patented RGOS system, the RG-RSR20-X Multi-Service Router Series can run a breadth of services without compromising the forwarding performance, enabled by Ruijie’s VCPU, REF, X-Flow and other patented technologies. The built-in firewall feature advances the traffic attack protection. The router series provides abundant software features and supports a variety of technologies such as MPLS, VPN, multicast, IPv6, NAT and MVRF, enriched backup solutions as well as QoS/HQoS to significantly save user investment without any further purchase of software licenses or service modules.
The RSR20-X Series, supporting the next-generation HSIC expansion module, can offer up to 10G bandwidth and can be expanded to provide enriched and comprehensive features. The hot swapping feature of the HSIC module, which is exclusive on the high-end routers, enables adding or replacing line cards without interruption to the operation of other services. In addition, the RSR20-X Series supports AC power redundancy, thereby tremendously improving the reliability of the devices.
Спецификация
|
Model |
RSR20-X-28 |
|
|---|---|---|
|
Module Slots |
4 HSIC slots |
|
|
Fixed Ports |
Fixed Switch Ports: 24 1000BASE-T ports Fixed WAN Ports: 2 1000BASE-T ports, 2 GE combo ports 1 console/AUX port |
|
|
Available Modules |
HSIC-2E1/CE1 |
|
|
Flash |
256MB |
|
|
Memory |
1GB |
|
|
Packet Forwarding Rate |
1.6Mpps |
|
|
LAN Protocol |
802.1x authentication, STP / RSTP / MSTP, RLDP, LLDP |
|
|
WAN Protocol |
PPPoE, HDLC, PPP, MP |
|
|
Routing Protocol |
Static routing, RIPv1/v2, OSPFv2/v3, BGP4/BGP4+, RIPng, IS-ISv4/v6, IGMPv1/v2/v3, IGMP proxy, PIM-DM, PIM-SM, PIM-SSM |
|
|
MPLS |
MPLS forwarding, LDP FRR, MPLS ping, MPLS traceroute, MPLS L3 VPN, MPLS L2 VPN, MPLS QoS, MPLS over GRE |
|
|
IP Application |
DHCP, DNS Client, NTP/SNTP, uRPF, TFTP+FTP(LM), Telnet, UDP helper, HTTP server, IPFIX |
|
|
IPv6 |
Manual tunnel, Auto tunnel, GRE tunnel, 6to4 tunnel, ISATAP tunnel, 6RD, NAT-PT, NAT64 |
|
|
QoS |
LLQ (PQ+CBWFQ), RTPQ/LLQ, CAR, GTS, WRED, HQoS |
|
|
Network Security |
AAA |
Local user, Radius, TACACS+ |
|
SSH |
SSH v1.5, SSH v2.0 |
|
|
Firewall |
Packet filtering, state detection, URL filtering |
|
|
NAT |
Static NAT, dynamic NAT, Static NAPT, dynamic NAT, cross VPN NAT |
|
|
GRE |
Support |
|
|
IPIP |
Support |
|
|
VPDN |
L2TP, PPTP, VPE |
|
|
IPsec |
Support |
|
|
ACL |
Standard ACL, extended ACL, time-based ACL, IPv6 ACL |
|
|
IPsec |
IPsec Tunnel |
150 |
|
IPsec one-way forwarding capacity (AES256) |
Up to 193Kpps |
|
|
High Availability |
VRRP, DLDP, BFD, GR |
|
|
Management |
SNMP v1/v2c/v3, syslog, RMON, USB, SD |
|
|
Dimensions (D x W x H) (mm) |
340 × 440 × 44 |
|
|
Rack Height |
1U |
|
|
Weight (Maximum) |
7kg (with packaging) |
|
|
MTBF |
>437,864 hours |
|
|
Power Consumption |
<48W |
|
|
Input Voltage |
100VAC~240VAC |
|
|
Input Frequency |
50Hz to 60Hz |
|
|
Power Redundancy |
Support |
|
|
Temperature |
Operating temperature: 0°C to 45°C |
|
|
Storage temperature: -40°C to 70°C |
||
|
Humidity |
Operating humidity: 5% to 95% RH (non-condensing) |
|
|
Storage humidity: 5% to 95% RH (non-condensing) |
||
Информация для заказа
|
Model |
Description |
|---|---|
|
RSR20-X Switch Series |
|
|
RG-RSR20-X-28 |
RG-RSR20-X-28 Router, 24 fixed 1000BASE-T ports, 4 fixed GE WAN ports, 4 HSIC slots, support hot swapping |
|
HSIC Module |
|
|
HSIC-2E1/CE1 |
2-port E1/CE1 module |
|
Power Module |
|
|
RG-PA60 |
AC power module |
