RG-S2910-H
Коммутаторы уровня доступа RG-S2910-H Series
Описание

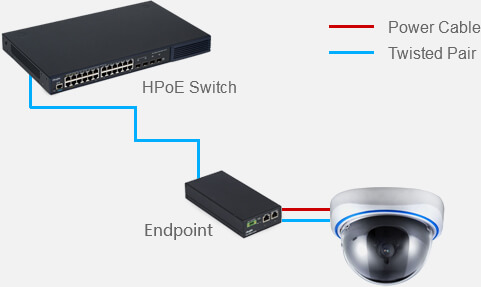

Ruijie RG-S2910-H High Power over Ethernet (HPoE) Switch Series pushes the frontier with leading IEEE802.3bt standard, delivering 60W power output per port. The HPoE switch guarantees the best security, efficiency, stability and energy-saving experiences.
The HPoE switch is highly adaptive to a breadth of scenarios, eliminating rigid ties to expensive deployment costs, slow implementation cycle, unstable power supply, management complexity, and unsatisfactory security problems that alternative solutions have been struggling to solve. The switch fully addresses high PoE access needs for low power scenario as well as high power Wi-Fi hotspot application in outdoor venue.
Feature highlights of RG-S2910-H HPoE Switch Series:
● Up to 60 Watts per Port by High-power PoE Technology (IEEE 802.3bt)
● 4 NeverDie High Reliability Technology: NFPP, XCor, VSU, XSurge
● Upto 67+ Year MTBF (Mean Time Between Failure)
● Lifetime Free Cloud Management
● Built-in Layer 3 Routing Support
● Power Redundancy Support
Параметры
|
Model |

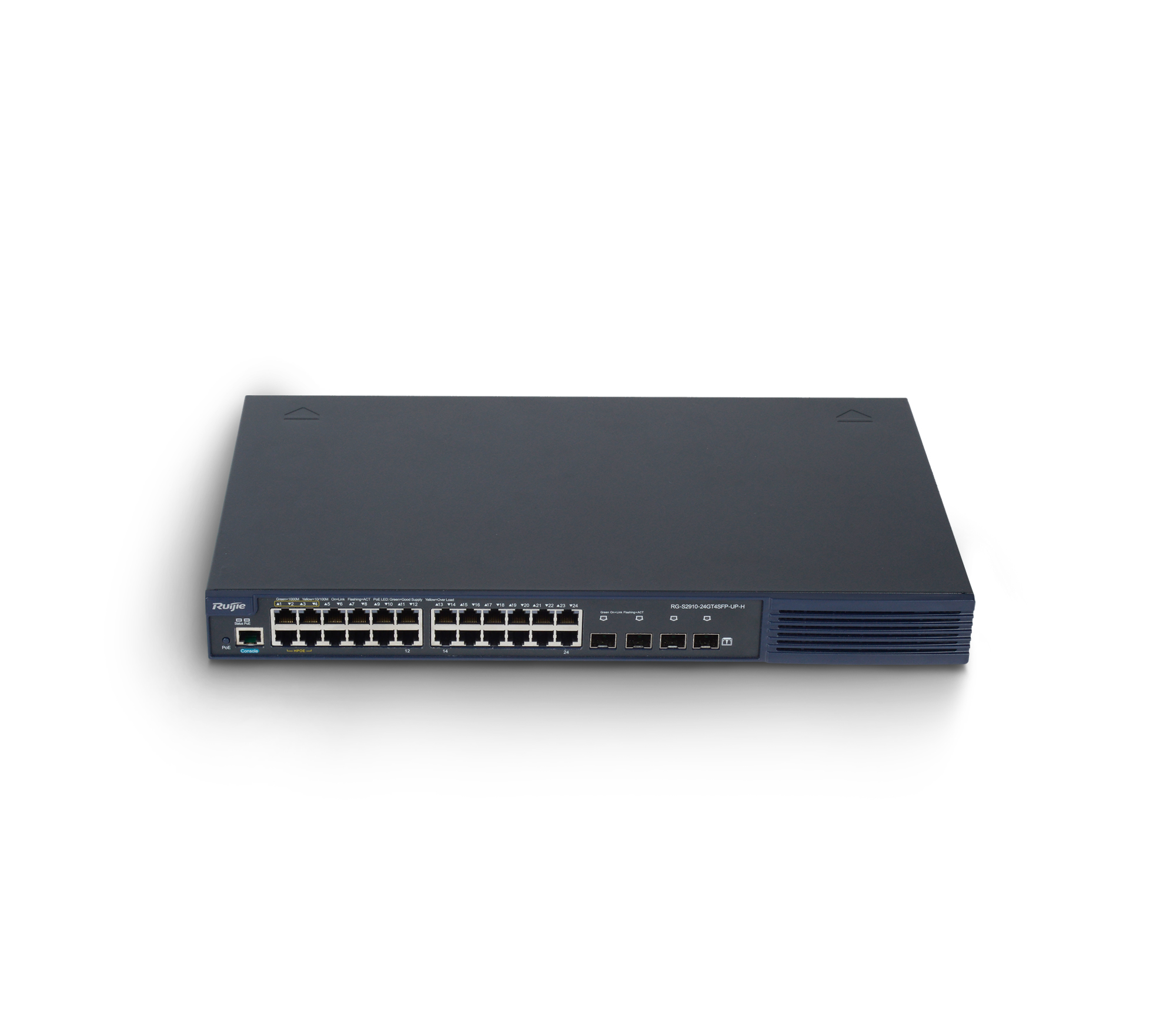

RG-S2910-24GT4SFP-UP-H |
RG-S2910-24GT4XS-UP-H |

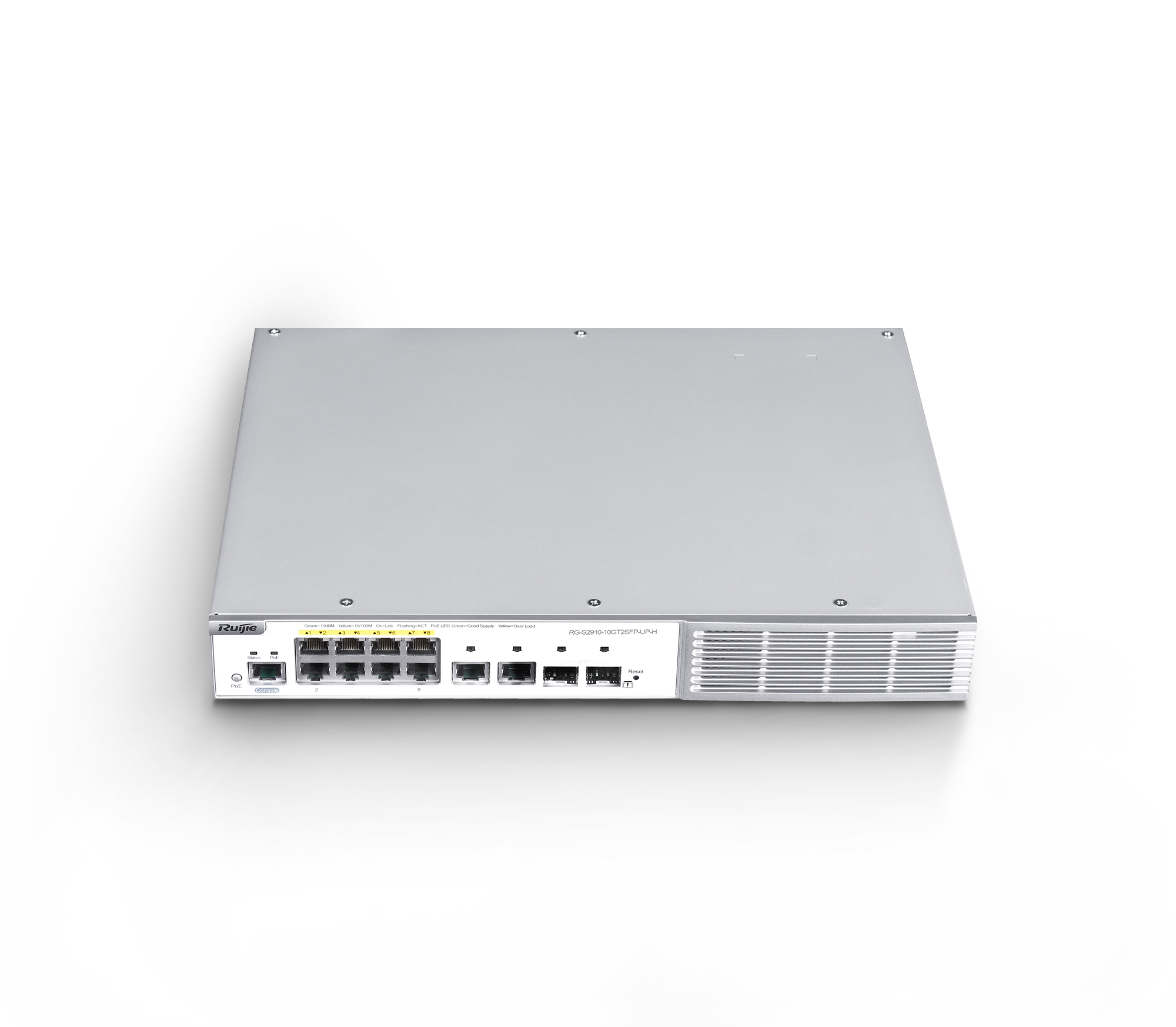

RG-S2910-10GT2SFP-UP-H |
|
|
Ports |
24 10/100/1000BASE-T ports (PoE/PoE+), 4 Gigabit SFP ports (non-combo) uplink, Port 1-4 for HPoE, AC |
24 10/100/1000BASE-T ports (PoE/PoE+), 4 1G/10G SFP+ ports (non-combo) uplink, Port 1-4 for HPoE, AC |
10 10/100/1000BASE-T ports (8ports PoE/PoE+), 2 Gigabit SFP ports (non-combo) uplink, Port 1-8 for HPoE, AC |
|
|
Management Port |
1 console port |
|||
|
Switching Capacity |
Up to 256Gbps |
Up to 256Gbps |
Up to 256Gbps |
|
|
Packet Forwarding Rate |
42Mpps/96Mpps |
Up to 96Mpps |
Up to 18Mpps |
|
|
PoE |
IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt |
|||
|
Port Buffer |
1.5MB |
|||
|
ARP Table |
1,000 |
1,000 |
500 |
|
|
MAC Address |
16K |
|||
|
Routing Table Size (IPv4/IPv6) |
500 (IPv4/IPv6) |
500 (IPv4/IPv6) |
64 (IPv4/IPv6) |
|
|
ACL Entries |
In: 1500 |
In: 1500 |
In: 750 |
|
|
VLAN |
Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, Private VLAN, Voice VLAN, IP subnet-based VLAN, GVRP |
|||
|
QinQ |
Basic QinQ, Flexible QinQ |
|||
|
Port Mirroring |
Support aggregation port as source and destination port of mirroring; Flow-based mirroring; VLAN-based mirroring; Many-to-one mirroring; One-to-many mirroring; Cross-device traffic mirroring; RSPAN; ERSPAN |
Support aggregation port as source and destination port of mirroring; Flow-based mirroring; VLAN-based mirroring; Many-to-one mirroring; One-to-many mirroring; Cross-device traffic mirroring; RSPAN; ERSPAN |
Support aggregation port as source and destination port of mirroring; Flow-based mirroring; VLAN-based mirroring; Many-to-one mirroring; One-to-many mirroring; RSPAN; ERSPAN |
|
|
Spanning Tree Protocols |
IEEE802.1d STP, IEEE802.1w RSTP, standard 802.1s MSTP, Port fast, BPDU filter, BPDU guard, TC guard, TC protection, ROOT guard |
|||
|
DHCP |
DHCP server, DHCP client, DHCP snooping, DHCP relay, IPv6 DHCP snooping, IPv6 DHCP client, IPv6 DHCP relay |
|||
|
Multiple Spanning Tree Protocol (MSTP) Instances |
64 |
|||
|
SDN |
OpenFlow |
|||
|
VSU |
VSU Stack Members |
Up to 9 stack members |
N/A |
|
|
VSL |
4 BASE-X ports can be configured as VSL |
N/A |
||
|
Zero Configuration |
CWMP(TR069) |
|||
|
L2 Features |
MAC, VLAN, Basic QinQ, Felix QinQ, Mirroring, STP, RSTP, MSTP, Broadcast storm control, IGMP v1/v2/v3 snooping, IGMP filter, IGMP fast leave, Jumbo frame, RLDP, LLDP, REUP, G.8032 |
|||
|
Layer 2 Protocols |
IEEE802.1d, IEEE802.1w, IEEE802.1s, IGMP Snooping v1/v2/v3 |
|||
|
Layer 3 Features |
ARP, IPv4/v6 |
|||
|
IPv4 Features |
Ping, Traceroute |
|||
|
IPv6 Features |
0-64 any length mask, ICMPv6, Neighbor Discovery, Manually configure local address, Automatically create local address, IPv6 Ping, IPv6 Tracert, IPv6 extender option head |
|||
|
Basic IPv6 Protocols |
IPv6 addressing, Neighbor Discovery (ND), IPv6 ACL, ICMPv6, IPv6 Ping, IPv6 Tracert |
|||
|
IPv4 Routing Protocols |
Static Routing, RIP, OSPFv1/v2 |
|||
|
IPv6 Routing Protocols |
Static Routing, RIPng, OSPFv3 |
|||
|
G.8032 |
Support |
|||
|
ACL |
Standard IP ACL, Extended IP ACL, Extended MAC ACL, Expert ACL, ACL80, IPv6 ACL, ACL Logging, ACL Counter, ACL Remark, Global ACL, ACL Redirect |
|||
|
QoS |
802.1p/DSCP traffic classification; Multiple queue scheduling mechanisms, such as SP, WRR, DRR, SP+WRR, SP+DRR; Input / output port-based speed limit; Each port supports 8 queue priorities,Dynamic QoS |
802.1p/DSCP traffic classification; Multiple queue scheduling mechanisms, such as SP, WRR, DRR, SP+WRR, SP+DRR; Input / output port-based speed limit; Each port supports 8 queue priorities,Dynamic QoS |
802.1p/DSCP traffic classification; Multiple queue scheduling mechanisms, such as SP, WRR, DRR, SP+WRR, SP+DRR; Input port-based speed limit; Each port supports 8 queue priorities,Dynamic QoS |
|
|
Reliability |
GR for RIP |
GR for RIP |
GR for RIP |
|
|
EEE Format |
Support IEEE 802.3az standard |
|||
|
Security |
Binding of the IPv6 and MAC address; Port-based and MAC-based 802.1x; MAB; Portal and Portal 2.0 authentication; ARP-check; DAI; Gateway anti-ARP spoofing; Hierarchical management by administrators and password protection; RADIUS and TACACS+; SSH V1.5 and SSH V2.0; IP source guard; CPP, NFPP; Port protection |
|||
|
Manageability |
SNMPv1/v2c/v3, RMON(1, 2, 3, 9), SSH, Syslog / Debug, NTP / SNTP, FTP, TFTP, Web |
|||
|
Smart Temperature Control |
Temperature monitoring and alert |
|||
|
Dimensions (W x D x H) (mm) |
440×260×44 |
440×260×44 |
340×260×44 |
|
|
Rack Height |
1RU |
|||
|
MTBF |
361712 hours |
388055 hours |
408710 hours |
|
|
Lightning Protection on Power Port |
6 Common Mode 4KV/Differential Mode 2K |
Common Mode 4KV/Differential Mode 2K |
Common Mode 6KV/Differential Mode 6KV |
|
|
Lightening Protection on Communication Port |
Common Mode 6KV |
|||
|
Power Supply |
AC input: |
|||
|
Power Consumption |
<460W |
<460W |
<630W |
|
|
PoE Power Consumption |
Total 370W PoE/PoE+/HPoE budget output power |
Total 370W PoE/PoE+/HPoE budget output power All 24 BASE-T ports support PoE (up to 24 ports) and PoE+ (up to 12 ports) All ports from Port 1-4 support HPoE output power of up to 60W per port |
Total 520W PoE/PoE+/HPoE budget output power All ports from Port 1-8 support HPoE output power of up to 60W per port |
|
|
Temperature |
Operating temperature: 0°C to 50°C |
|||
|
Storage temperature: -40°C to 70°C |
||||
|
Humidity |
Operating humidity: 10% to 90%RH |
|||
|
Storage humidity: 5% to 95%RH |
||||
|
Operating Altitude |
-500m to 5,000m |
|||
Информация для заказа
|
Model |
Description |
|
RG-S2910-24GT4SFP-UP-H |
24 10/100/1000BASE-T ports (PoE/PoE+) and 4 Gigabit SFP ports (non-combo) uplink, Port 1-4 for HPoE, AC |
|
RG-S2910-24GT4XS-UP-H |
24 10/100/1000BASE-T ports (PoE/PoE+) and 4 1G/10G SFP+ ports (non-combo) uplink, Port 1-4 for HPoE, AC |
|
RG-S2910-10GT2SFP-UP-H |
10 10/100/1000BASE-T ports (HPoE/PoE/PoE+) and 2 Gigabit SFP ports (non-combo) uplink, Port 1-8 for HPoE, AC |
|
Optional Industrial Adapters and Accessories |
|
|
Mini-GBIC-SX-MM850 |
1000BASE-SX mini GBIC Transceiver (850nm) |
|
Mini-GBIC-LX-SM1310 |
1000BASE-LX mini GBIC Transceiver (1310nm) |
|
Mini-GBIC-LH40-SM1310 |
1000BASE-LH mini GBIC Transceiver (1310nm, 40km) |
|
Mini-GBIC-ZX50-SM1550 |
1000BASE-ZX mini GBIC Transceiver (1550nm, 50km) |
|
Mini-GBIC-ZX80-SM1550 |
1000BASE-ZX mini GBIC Transceiver (1550nm, 80km) |
|
Mini-GBIC-ZX100-SM1550 |
1000BASE-ZX mini GBIC Transceiver (1550nm, 100km) |
|
XG-SFP-AOC1M |
10GBASE SFP+ Optical Stack Cable (included both side transceivers) for S2910 and S5750-H Series Switches, 1m |
|
XG-SFP-AOC3M |
10GBASE SFP+ Optical Stack Cable (included both side transceivers) for S2910 and S5750-H Series Switches, 3m |
|
XG-SFP-AOC5M |
10GBASE SFP+ Optical Stack Cable (included both side transceivers) for S2910 and S5750-H Series Switches, 5m |
