RG-AP110-L
Wi-Fi 4 Single-band Wall AP
Описание

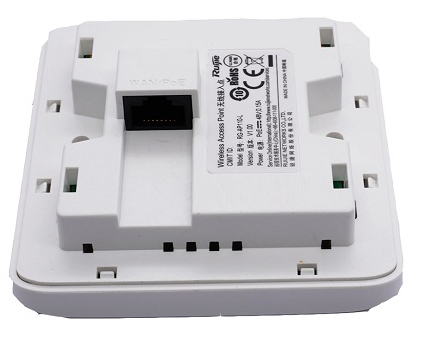

RG-AP110-L is designed for wireless deployment in hotels, offices, residential buildings and settings alike. The wall-mountable AP has the same size as a standard 86-type faceplate with integrated Ethernet and voice ports. Featuring a concise design and easy deployment, the AP enables zero disruption to the interior finishes and offers the best solution for scenarios with delicate interior design.
Спецификация
|
Model |
RG-AP110-L |
|
|---|---|---|
|
Target Deployments |
For wireless deployment in hotels, offices, residential buildings |
|
|
Basic Specifications |
Radio |
Single band |
|
Protocol |
802.11b/g/n |
|
|
Operating Bands |
2.4GHz |
|
|
Antenna |
Built-in omnidirectional antenna |
|
|
Max Throughput |
300Mbps |
|
|
Spatial Streams |
2 |
|
|
IP Rating |
IP41 |
|
|
Ports |
Service Port |
Front: 1 10/100M Ethernet LAN ports Rear: 1 10/100M Uplink port Supports 802.3af PoE |
|
Power |
Power Supply |
PoE (802.3af) <5W |
|
Power Consumption |
||
|
WLAN |
Maximum clients per AP |
32 |
|
BSSID capacity |
8 |
|
|
SSID hiding |
Support |
|
|
Configuring the authentication mode. Encryption mechanism and VLAN attributes for each SSID |
Support |
|
|
Remote Intelligent Perception Technology (RIPT) |
Support |
|
|
Intelligent load balancing based on the number of users or traffic |
Support |
|
|
STA control |
SSID/radio-based |
|
|
Bandwidth control |
STA/SSID/AP-based speed control |
|
|
Band Steering (5G Priority) |
N/A |
|
|
Dynamic Frequency Selection(DFS) |
Future release support |
|
|
Security
|
PSK authentication |
Support |
|
Web portal authentication (by Ruijie Cloud integration) |
Support (Ruijie EG Security Gateway Required) |
|
|
802.1x authentication |
NA |
|
|
Data encryption |
WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits) |
|
|
PEAP authentication |
Support |
|
|
Data frame filtering |
Whitelist, static/dynamic blacklist |
|
|
User isolation |
Support |
|
|
Rogue AP detection and countermeasure |
Support |
|
|
Standard & Extended IP & MAC ACL |
Support |
|
|
RADIUS |
NA |
|
|
CPU Protection Policy (CPP) |
NA |
|
|
Wireless Intrusion Detection System(WIDS) |
Support |
|
|
IPv4 address |
Static IP address or DHCP reservation |
|
|
Management and Maintenance |
Network management |
SNMP v1/v2C/v3, Telnet, TFTP, FTP and Web management |
|
Fault detection and alarm |
Support |
|
|
Cloud AC management |
Support |
|
|
Statistics and logs |
Support |
|
|
External Characteristics |
Lock |
N/A |
|
LED Indicators |
1 LED status indicator |
|
|
Relevant Standard |
Wi-Fi Alliance Certification |
Support |
|
Safety Standard |
GB4943, EN/IEC 60950-1 |
|
|
EMC Standard |
GB9254, EN301 489 |
|
|
Health Standard |
EN 62311 |
|
|
Radio Standard |
EN300 328, EN301 893 |
|
|
Vibration Standard |
IEC60068－2-31, ETSI EN300 019, NEBS GR-63-CORE |
|
|
Specifications |
Dimensions (W x D x H) (mm) |
86 x 85 x 34 |
|
Weight |
0.1KG |
|
|
Work Environment |
Temperature |
Operating Temperature: 0°C to 40°C |
|
Storage Temperature: -40°C to 70°C |
||
|
Humidity |
Operating Humidity: 5% to 95% (non-condensing) |
|
|
Storage Humidity: 5% to 95% (non-condensing) |
||
|
Installation Mode |
Compatible with UK/US/EU Junction box *Universal Mount Kit need to purchase separately for US/EU junction box |
|
