RG-AP840-I

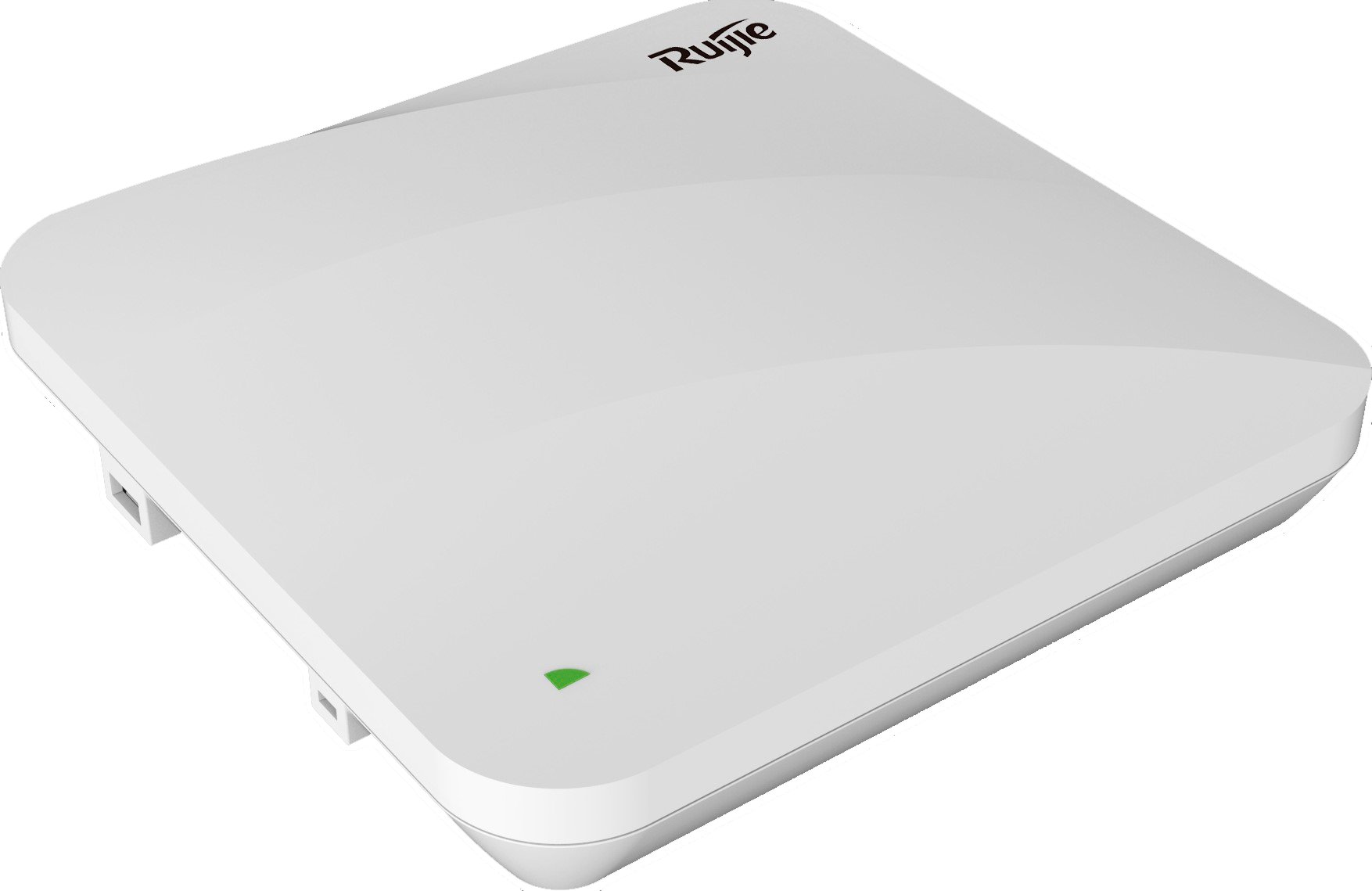

RG-AP840-I Wireless Access Point

image-main

image-1

image-2

image-3

Описание

RG-AP840-I is a high-performance Wi-Fi 6 enterprise AP designed for the majority of indoor scenarios. With the built-in IoT module, enterprise customers can be ready for future IoT expansion to boost the operational efficiency and customer experience.

The Ruijie RG-AP840-I supports concurrent dual-band dual-radio (2x2:2 in 2.4GHz, 4x4:4 in 5GHz), up to 6 total spatial streams and a maximum of 5.2Gbps wireless throughput. Taking the advantage of Wi-Fi 6 OFDMA Modulation, MU-MIMO, and BSS Color Spatial Reuse, the RG-AP840-I guarantees minimal signal interference and a maximum of 1024 client connections.

Additionally, RG-AP840-I is IoT ready with integrated module of BLE, without the need of external module and additional investment. With a total of 3 built-in Gigabit LAN ports, the LAN3 port is specially design for external IoT sensor connection with PoE out (passive) feature. Therefore, no extra power adaptor is needed for the sensor.

Upon the uprising challenges of management efficiency and wireless security, all Ruijie enterprise APs support hybrid management mode. Either deployed as standalone AP (Fat mode) or managed AP (Fit mode), the AP will detect the operation mode automatically without extra effort on firmware upgrade. For additional security and operation, we recommend the enterprise customers to choose either one of the below wireless controller options depending on the functionality and capacity:

Public Cloud: Ruijie Cloud – Ruijie Public Cloud service (powered by RG-MACC) is targeted for the SME segment with integrated captive portal, authentication (such as PPSK for employees, Facebook, voucher, account, etc.), and reporting features. Together with Ruijie Cloud Mobile App (free download), SME customers can provision and manage their networks at fingertips.

Hybrid Cloud: RG-WS6000 Series Wireless Controller (on-premises) Plus Cloud Management (Optional) – targeted for enterprise office and campus with single or multiple sites and high-density AP deployment. The controller appliances are installed at the customer’s site with fully integrated wireless management and authentication feature, supporting up to 5000 APs per cluster. Optionally, the cloud management platform allows for value-added features like centralized device configuration and monitoring, AI radio (RF) optimization, reporting, etc.

Private Cloud: RG-MACC Software Controller – targeted for ISP/MSP, government, or multi-national corporation (MNC) with diverse customer sites and demand on integration of their billing, portal and security systems. The RG-MACC supports unified device management, not only for wireless access points, but also switches and gateway devices.

Key Highlights:

• Max 5.2Gbps (Total 6 Spatial Streams) with Concurrent Dual-Band Design
• Max 1024 Client connections
• OFDMA, MU-MIMO and BSS Technology for minimal wireless signal interference
• IoT Ready: Integrated with BLE module and one IoT extension port with PoE Out (passive)
• AI Wireless Optimization: one-click optimization powered by Ruijie WIS technology
• Hybrid Management: support standalone AP to over thousands of APs with deployment options of appliances, private cloud or public cloud service
• Mobility Management: Free mobile app available for RG-MACC-Base private cloud or Ruijie Public Cloud customers

Спецификация

Model  RG-AP840-I
Hardware specifications
Radio Dual-radio dual-band:
Radio 1: 2.4G 11n: 2×2 MIMO
Radio 2: 5G 11ax: 4x4 MIMO
Protocol Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac
Operating Bands 802.11b/g/n :2.4G ~ 2.483GHz
802.11a/n/ac/ax : 5.150~5.350GHz,5.47~5.725GHz,5.725~5.850GHz (vary depending on different countries)
Spatial Streams Up to 6: 2×2:2 in 2.4GHz , 4×4:4 in 5GHz
Max Throughput Maximum throughput of 2.4G: 400Mbps
Maximum throughput of 5G: 4.8Gbps
Maximum throughput per AP: 5.2Gbps
Modulation OFDM:BPSK@6/9Mbps,QPSK@12/18Mbps,16-QAM@24Mbps,64-QAM@48/54Mbps
DSSS:DBPSK@1Mbps,DQPSK@2Mbps,and CCK@5.5/11Mbps
MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM
OFDMA (up to 1024-QAM)
Receiver Sensitivity 11b:-96dBm(1Mbps),-93dBm(5Mbps),-89dBm(11Mbps)
11a/g:-91dBm(6Mbps),-85dBm(24Mbps),-80dBm(36Mbps),-74dBm(54Mbps)
11n:-90dBm(MCS0),-70dBm(MCS7),-89dBm(MCS8),-68dBm(MCS15)
11ac HT20:-88dBm(MCS0), -63dBm(MCS9)
11ac HT40:-85dBm(MCS0), -60dBm(MCS9)
11ac HT80:-82dBm(MCS0), -57dBm(MCS9)
11ax HT80:-82dBm(MCS0), -57dBm(MCS9), -52dBm(MCS11)
11ax HT160:-80dBm(MCS0), -49dBm(MCS11)
Antenna Integrated antenna design
Antenna Gain 2.4G: 3dBi
5G: 3dBi

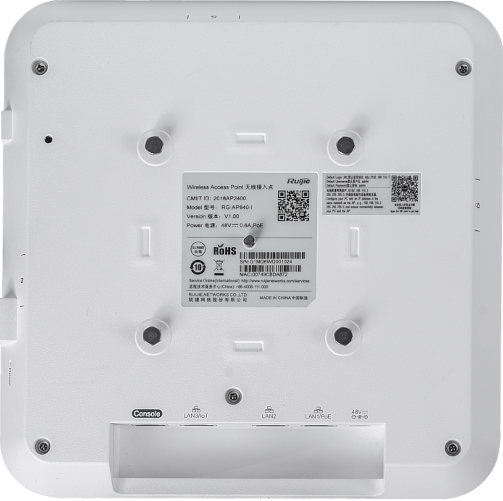

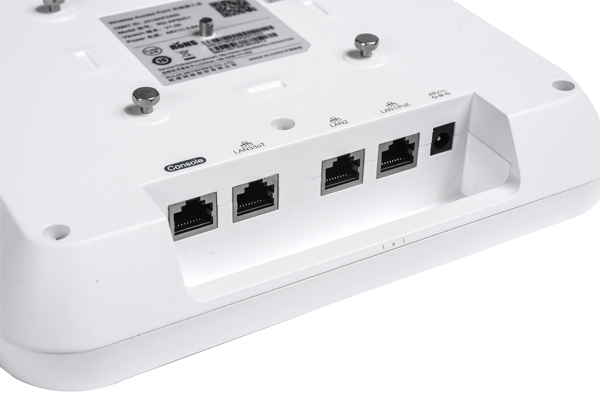

Service Ports 3 10/100/1000M Ethernet ports (The LAN1 Port supports PoE in, LAN3 Port supports LAN & IoT module expansion with PoE out)
Management Port 1 console port
USB 1 USB 2.0 port
IoT Capability BLE
Reset Button Support
Anti-theft Lock Support
LED Indicator 1 LED indicator (Supports red, green, blue, orange and flashing mode, which indicates device access. The indicator can be switched off to silent mode.)
Transmit Power ≤100mw(20dBm) (vary depending on different countries)
Adjustable Power 1dBm
Power Supply Local power supply (DC 48V/1A) (Power adapters are sold separately)
PoE+ (802.3at)
PoE (802.3af) – Not recommended: 5G radio is degraded to 2x2 MIMO, and the PoE out of the LAN3/ IoT port is disabled
Power Consumption <25.4W
Physical Specifications
Temperature Operating Temperature: -10°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity Operating Humidity: 5% to 95% (non-condensing)
Storage Humidity: 5% to 95% (non-condensing)
Installation Mode Ceiling/wall-mountable
Dimensions (W x D x H) 220mm ×220mm x48.85mm(Height of the AP only, excluding the mount kit)
Weight 1.30kg
IP Rating IP41
MTBF 250,000 hours
Certifications and Compliance
Safety Standard GB4943, EN/IEC 60950-1
EMC Standard GB9254, EN301 489
EN 55032 , EN 61000, EN 55035
Health Standard EN 62311
Radio Standard SRRC, EN300 328, EN301 893
Software Specifications
WLAN Maximum clients per AP 1024
BSSID capacity Up to 32
SSID hiding Support
5G Priority (Band Steering) Support
Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID Support
Remote Intelligent Perception Technology (RIPT) Support
Intelligent device recognition technology Support
Intelligent load balancing based on the number of users or traffic Support
STA control SSID/radio-based
Bandwidth control STA/SSID/AP-based bandwidth control
Data encryption WPA(TKIP), WPA-PSK, WPA2(AES), WPA3, WEP(64/128 bits)
PSK and web authentication Support
PPSK authentication (For Employee) Support (require wireless controller)
802.1x authentication Support
PEAP authentication Support
Data frame filtering Whitelist, static/dynamic blacklist
User isolation Support
Rogue AP detection and countermeasure Support
Dynamic ACL assignment Support
RADIUS Support
CPU Protection Policy (CPP) Support
Network Foundation Protection Policy (NFPP) Support
IP IPv4 and IPv6 address Support
Multicast routing Multicast to unicast conversion
DHCP service DHCP Snooping, Option 82, Server, Client
Management and Maintenance Supported wireless LAN controllers Ruijie WS Series Wireless Controller

Ruijie MACC-Base Software Controller

Ruijie Cloud (Public Cloud)
Management protocol Telnet, SSH, TFTP, Web
Wireless Intelligent AI Optimization Service (WIS) Support
SNMP SNMPV1,V2c,V3
Syslog / Debug Support
FAT/FIT/MACC mode switching Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management

Информация для заказа

Model

Description

RG-AP840-I

High-density Wi-Fi 6 (802.11ax) indoor wireless access point, concurrent dual-band dual-radio (2x2:2 in 2.4GHz, 4x4:4 in 5GHz), up to 6 total spatial streams and maximum 5.2Gbps wireless throughput, 3 Gigabit Ethernet ports (LAN3 port supports IoT sensor extension), integrated with BLE, support PoE+ and local power supply (PoE+ and local power adapters are sold separately)

RG-E-130(GE)

1-port PoE adapter (1000Base-T, PoE+/ 802.3at)
