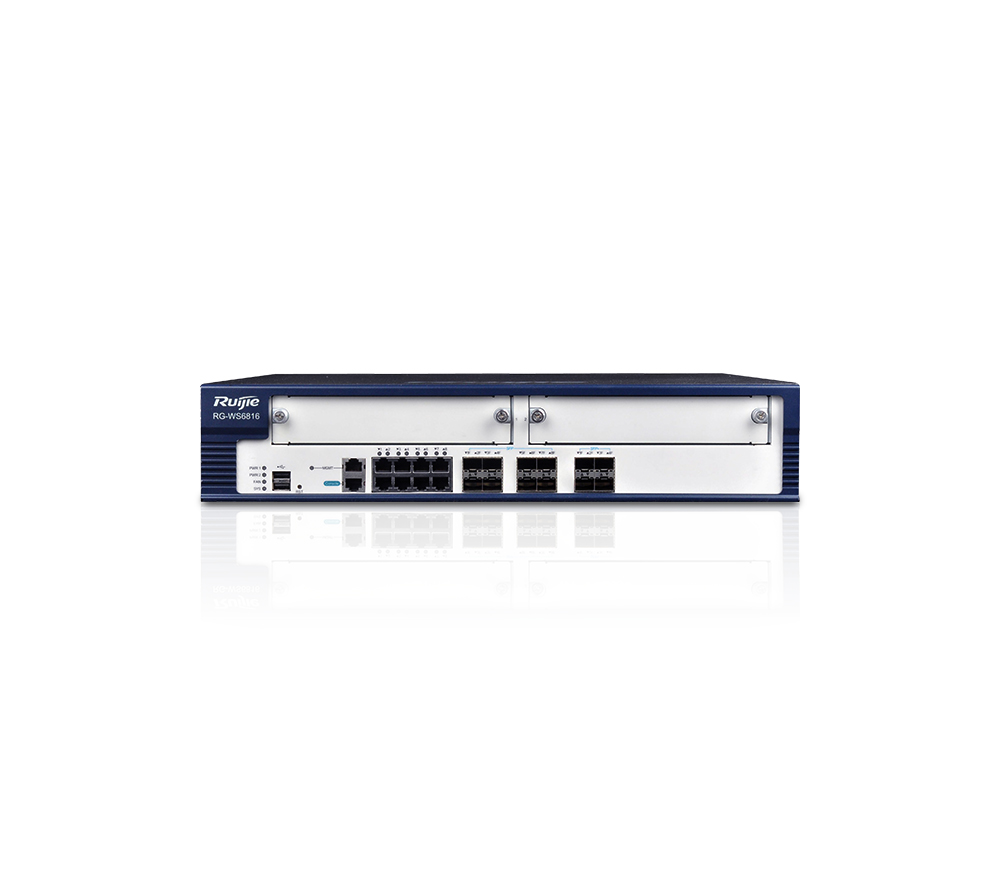

RG-WS6816

WLAN Controller for Operator and Large Campus (upto 6400 AP)

image-main

image-1

image-2

image-3

Описание

RG-WS6816 Wireless Controller

The Ruijie RG-WS6816 High-Performance Wireless Controller is designed to support the next-generation high-speed wireless network. The Ruijie RG-WS6816 High-Performance Wireless Controller can be deployed at either Layer 2 or Layer 3 network to communicate with access point (AP) without any network changes. The Ruijie RG-WS6816 High-Performance Wireless Controller can manage up to 128 wireless APs by default and a maximum capacity of 3200 wireless APs with license upgrade.

The Ruijie RG-WS6816 High-Performance Wireless Controller enables centralized control and management of APs, delivering high transparency and visibility. With Ruijie’s leading management platform Smart Network Commander (SNC) and wireless APs, the Ruijie RG-WS6816 High-Performance Wireless Controller can flexibly manage AP configuration and optimize radio frequency (RF) coverage to enhance the wireless network performance and reduce deployment workload at the same time.

The Ruijie RG-WS6816 High-Performance Wireless Controller enables role-based network service with the cutting-edge security and clustering technologies. The clustering technology shares wireless user database among multiple controllers and allows users to roam seamlessly between different areas within the network. The Ruijie RG-WS6816 High-Performance Wireless Controller thereby delivers uninterrupted wireless voice communications with superior security and availability.

Спецификация

Model

RG-WS6816

Service Port

8 1000BASE-T/1000BASE-X ports (combo)
4 10G/1G BASE-X SFP+ ports
Support up to 2 expansion modules, each WNM-4GE-S expansion module supports 4 copper/fiber combo ports or 2 10GE ports

Management Port

1 console port, 2 USB ports

1 10/100/1000M MGMT port

Security Standard

GB4943-2011

EMC Standard

GB9254-2008, CLASS A

Performance

Default Number of Manageable APs

128

Maximum Number of Manageable APs

Regular AP 3200, Wall AP 6400, Flexible expansion by adding licenses

Maximum Number of Configurable APs

16K

Maximum Number of Manageable Clients

80K

802.11 Performance

40Gbps

VLAN

4,094

Maximum Number of Clients Supported by the Built-in Portal

15000

ACL

512K

MAC Address Table

128K

Local Authentication

300 wireless clients

ARP Table

96K

IPv6 Neighbor Table

10K

Inter-AC Roaming Switch Time

≤50ms

WLAN

802.11 LAN Protocol

802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11r, 802.11i, 802.11e, 802.11n

CAPWAP

Layer 2/Layer 3 network topology between an AP and AC
Enable an AP to automatically discover an accessible AC
Enable an AP to automatically upgrade software version from an AC
Enable an AP to automatically download configurations from an AC
Network Address Translation (NAT) traversal

Roaming

Intra-AC roaming
Inter-AC roaming

Pre-AX

Support

CorrectLink

Support

AirReorder

Support

Forwarding

Local forwarding
Centralized forwarding

Wireless QoS

AP-based bandwidth control
WLAN-based bandwidth control
User-based static and smart speed control
Fair balancing

User Isolation

AC-based user isolation
AP-based user isolation
WLAN-based user isolation

Reliability

Fast switching between 2 ACs
Multiple ACs redundancy (1:1 A/A and A/S, N:1)
Multiple ACs clustering (N:N)
Remote Intelligent Perception Technology (RIPT)
Nonstop service upgrade

STA Management

AP-based STA access control
SSID-based STA access control
AP-based load balancing
AP traffic-based load balancing
5G priority access
RSSI threshold

STA RSSI Threshold

0 to 100

STA Idle Timeout

60 to 86,400 seconds

STA Average Data Rate Threshold

8 to 261120 with the accuracy of 8Kbps

Adjusting Transmit Power of Beacon and Probe Response

Support

Offline Syslog

Support

RF Management

Setting country codes
Manually setting transmit power
Automatically setting transmit power
Automatically setting working channel
Automatically adjusting transmission rate
Support blackhole compensation
Support RF interference detection and avoidance

Security

IPv4 Security

Web authentication
802.1x authentication
PEAP authentication

IPv6 Security

Web authentication
802.1x authentication

PPSK

N/A

Virtual AP

Support

Virtual AC

Support

802.11 Security and Encryption

Multiple SSIDs
SSID hiding
802.11i-compliant PSK authentication
WPA and WPA2
WEP (WEP/WEP128)
WAPI
TKIP
CCMP
Protection against ARP spoofing

SMP

Support

CPP

Support

NFPP

Support

WIDS

Support

Internet Protocols

IPv4 Protocol

Ping, Traceroute, DHCP Server, DHCP Client, DHCP Relay
DHCP Snooping, DNS Client, NTP, Telnet, TFTP Server, TFTP Client, FTP Server, FTP Client

IPv6 Protocol

DNSv6 Client, DHCPv6 Relay
DHCPv6 Server, TFTPv6 Client
FTPv6 Server, FTPv6 Client
IPv6 CAPWAP, ICMPv6
IPv6 Ping, IPv6 Traceroute,
Manual tunnel, automatic tunnel
Manual configuration address, automatic local address

IPv4 Routing

Static routing, OSPF

IPv4 Routing Table Capacity

8K

IPv4 Static Routing Table Capacity

1K

IPv6 Routing

Static routing

IPv6 Routing Table Capacity

1K

IPv6 Static Routing Table Capacity

1K

Management

Network Management

SNMP v1/v2c/v3, RMON,
Remote probe, Syslog

Network Management Platform

Web management (Smart-web)
RG-SNC management
Heat Map diagram
RILL management

User Access Management

Login via console port, Login via Telnet
Login via SSH, Upload to FTP

Dimensions (W × D × H) (mm)

440 × 560 × 88.1

Rack Height

2RU

Weight

19kg

Installation Mode

19-inch rack

Power Supply

100VAC to 240VAC, 50Hz to 60Hz

Switching Power Supply

Supports up to 2 PA-300I switching power supply modules with at least 1 power module

Power Consumption

<100W

Temperature

Operating Temperature: 0ºC to 45ºC

Storage Temperature: -40ºC to 70ºC

Humidity

Operating Humidity: 5% to 95%RH (non-condensing)

Storage Humidity: 5% to 95%RH (non-condensing)

Operating Altitude

0-3000m

Информация для заказа

Model

Description

RG-WS6816

Next Generation Wireless Controller, 8-Port 10/100/1000Base-T, 8 GE SFP and 4-Port 10G Combo Ports, 2 Expansion Modules, Dual redundancy power supply (1 power supply is included), 128 APs license by default, maximum 3200 APs License or maximum 5000 APs License for Wall AP

License

LIC-WS-32

WS Series Wireless Controllers upgrade license for 32 APs or 64 Wall APs

LIC-WS-128

WS Series Wireless Controllers upgrade license for 128 APs or 256 Wall APs
